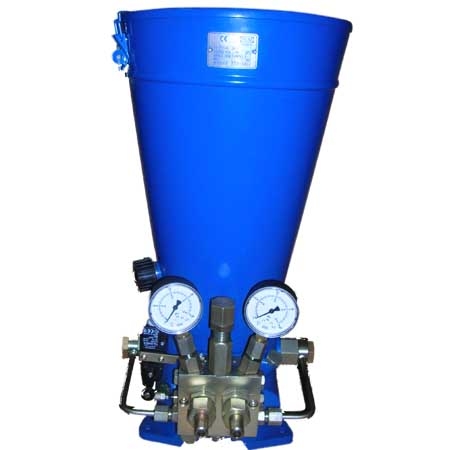

CENTRAL LUBRICATION PUMP TYPE PD 40

The pump is used for periodical plastic grease or oil feeding to machine friction nodes through two-way feeders (dosing distributors).

It is recommended for use in high-load machines and devices with up to 50 lubrication points, located short distances from each other and requiring intensive lubrication (e.g. machines and devices in ironworks, steelworks, non-ferrous metal smelters, mining industry, building material plants, on ships etc).

The pumps in overflow valve execution (PD 40A-10-…or PD 40B-10-…), working with an electromagnetic distributor located in the lubricating system outside the pump are recommended to serve machines and devices set in a line and a long distance from each other.

Pumps in the hydraulic distributor execution (PD 40A-30-… or PD 40B- 30-…) are recommended to serve machines and devices not located in a linę and at short distances from each other.

The pumps of PD 40-10 execution may also be used in other systems, e.g. progressive ones.

Delivery50 cm3/min
Nominal pressure 20 MPa
Power demand 0,38 kW
Rated voltage 230/400 V lub 500 V
Lubricants forced plastic grease or lubricating oils
Ambient temperature -10 ... 60°C
Tank capacity 15 dm3
Weight27 kg
The pump is used for periodical plastic grease or oil feeding to machine friction nodes through two-way feeders (dosing distributors).
lubricator tank with a feed mechanism power unit comprising an engine, two gears: a roll and a worm one, as well as a connecting rod assembly with a crosshead all assembled in a common body two forcing units comprising bodies, pistons coupled with slides of the connecting rod assembly with a crosshead and return valves, an overflow valve located at the outlet of the pump or hydraulic control distributor comprising a body, slides and an overflow valve.
