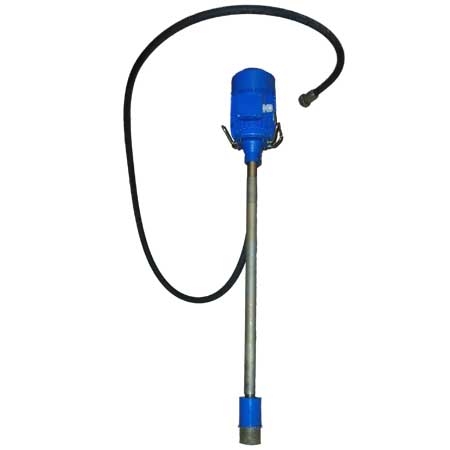

FILLING PUMP TYPE PZ 40

The pump is designed to force oils and plastic grease from barrels or other containers to tanks of central lubrication pumps type PA, PD and others.

It may be used to fill other containers with lubrication media as well.

Pump delivery 4 dm3/min
Nominal pressure 1,6 MPa
Engine rated voltage 230/400 V lub 500 V , 50 Hz
Lubricants forced oils and plastic grease
Power demand 0,75 kW
Ambient temperature -10 ... 60°C
Length of flexible hose ~3 mb
Weight 19kg
The pump is designed to force oils and plastic grease from barrels or other containers to tanks of central lubrication pumps type PA, PD and others. It may be used to fill other containers with lubrication media as well.
The filling pump is a gear pump driven by en electric motor. The pump consists of the following assemblies: body connected with the forcing assembly motor, clutch, two pipes integrating the forcing unit with the body (one of them is a clutch casing and the other is a forcing line) and a flexible hose with an attachable end. Locating the forcing assembly at the pipe jib makes it possible to immerse the pump at significant depth, e.g. close to the bottom of the barrel with lubricant.
