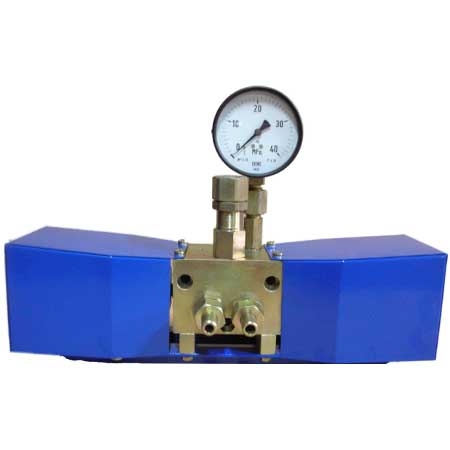

Four-way electromagnetic distributor ER*

The distributor is designed to change the direction of lubricant flow in the two-way central lubrication system.

It is used in the lubrication system (in close proximity to the pump), in which the pump does not have a distributor.

Permissible flow rateapprox. 1 dm3/min.
Nominal pressure 20 MPa lub 32 MPa
Overdrive timeapprox. 0.5 seconds
Starting/holding power 3500/270 VA
Rated voltage at a frequency of 50 Hz 400 V lub 500 V
Ambient temperature -10 ... 60°C
Weight25 kg
*Customized to your needs
The distributor is designed to change the direction of lubricant flow in the two-way central lubrication system. It is used in the lubrication system (in close proximity to the pump), in which the pump does not have a distributor.
The distributor is made up of the following assemblies and parts:
  • slide distributor equipped with an overflow valve and pressure gauge with pulsation dampener,
  • two solenoid valves, the jumpers of which are connected to the slider of the distributor and the core housing to the distributor body by means of brackets,
  • a mounting plate connected to the distributor body,
  • four simple switches for connecting grease supply and discharge lines.
