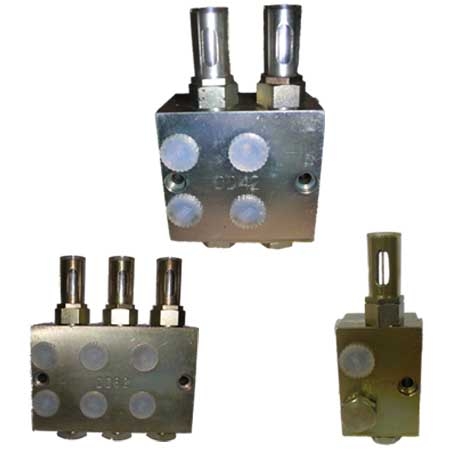

TWO-WAY FEEDERS (DOSING DISTRIBUTORS) TYPE DD

Two-way feeders (dosing distributors) are designed to feed certain portions of lubricant to the lubrication points in machines and devices.

They are component parts of two-way force feed oiling systems.

Number of lubricant outlets 1, 2 ,3 ,4 lub 6
Max. delivery from one outlet 2, 4 lub 8 cm3/cykl
Nominal pressure 32 MPa
Min. activating pressure 1 MPa
Types of lubricants fed smary plastyczne oraz oleje
Working temperature -10 ... 60°C
Two-way feeders (dosing distributors) are designed to feed certain portions of lubricant to the lubrication points in machines and devices. They are component parts of two-way force feed oiling systems.
A feeder consists of the following parts and assemblies: body, pistons articulated with shanks, distributing slides and delivery controllers’ bodies with seals. In the controllers’ bodies, there are oblong holes for visual control of the feeder operation; in the feeder’s body, there are holes with M16 x 1.5 threaded seats to connect main lubrication conduit lines and M14 x 1.5 to connect lines through which grease is fed to the reception points.
