| Capacity | 30 cm3/piston stroke
|
| Nominal pressure
| 1,6 MPa
|
| Type of lubricants to be pumped | plastic oils and greases |
| Ambient temperature | -10 ... 60°C
|
| Tank capacity | 12 dm3
|
| Length of flexible hose | ~3 mb
|
| Mass of pump without grease | ~17 kg
|
The pump is designed to fill tanks of PR 14 type central lubrication pumps and other pumps with plastic grease.
It may be used to fill other containers with plastic grease as well.

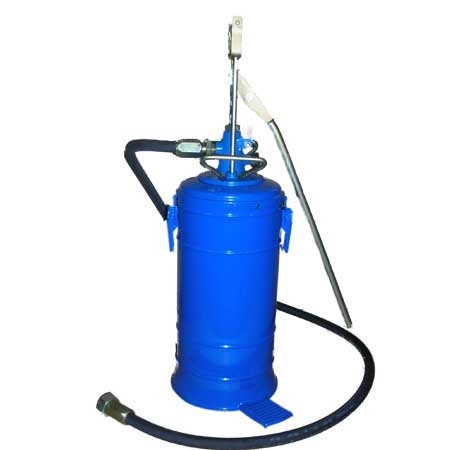

The filling pump is a manually operated piston pump and consists of the following assemblies: a lubricant tank with a pressure plate and handle, a driving lever connected to the piston, a pressure unit connected to the reservoir cover, a cylinder, a suction valve and a piston with a discharge valve, a flexible hose for connection to the loading nozzle in the filled reservoir with a nut end.
