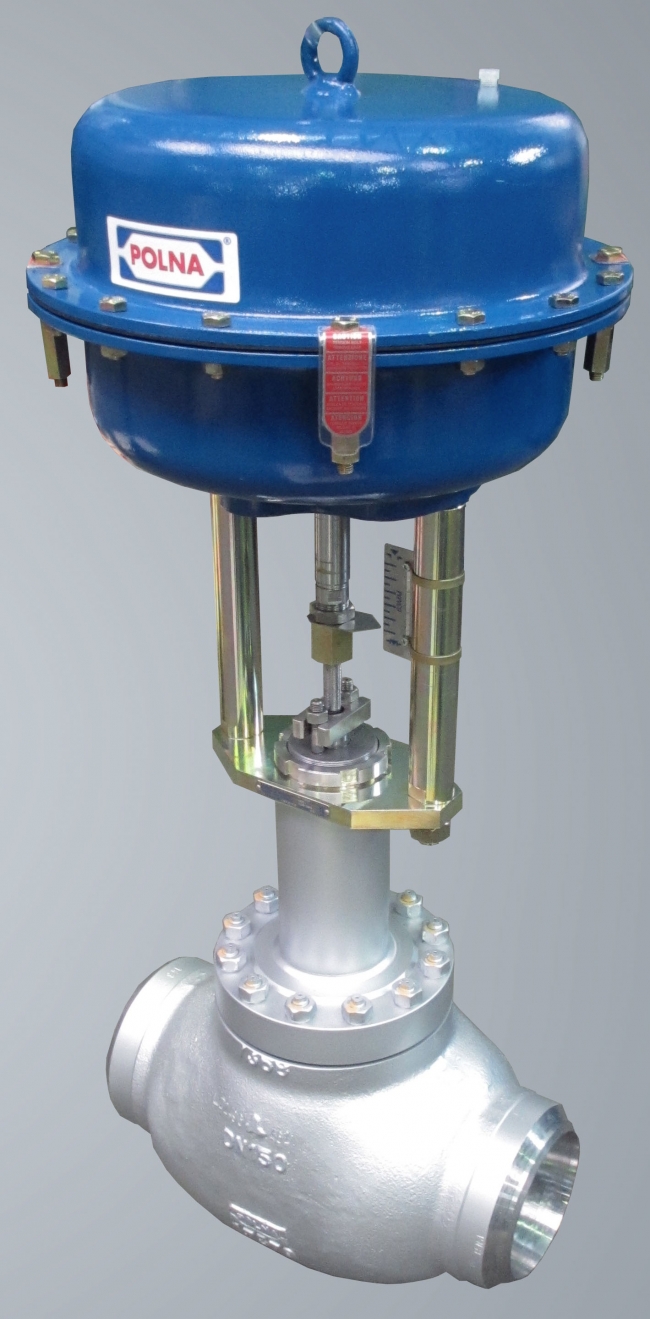

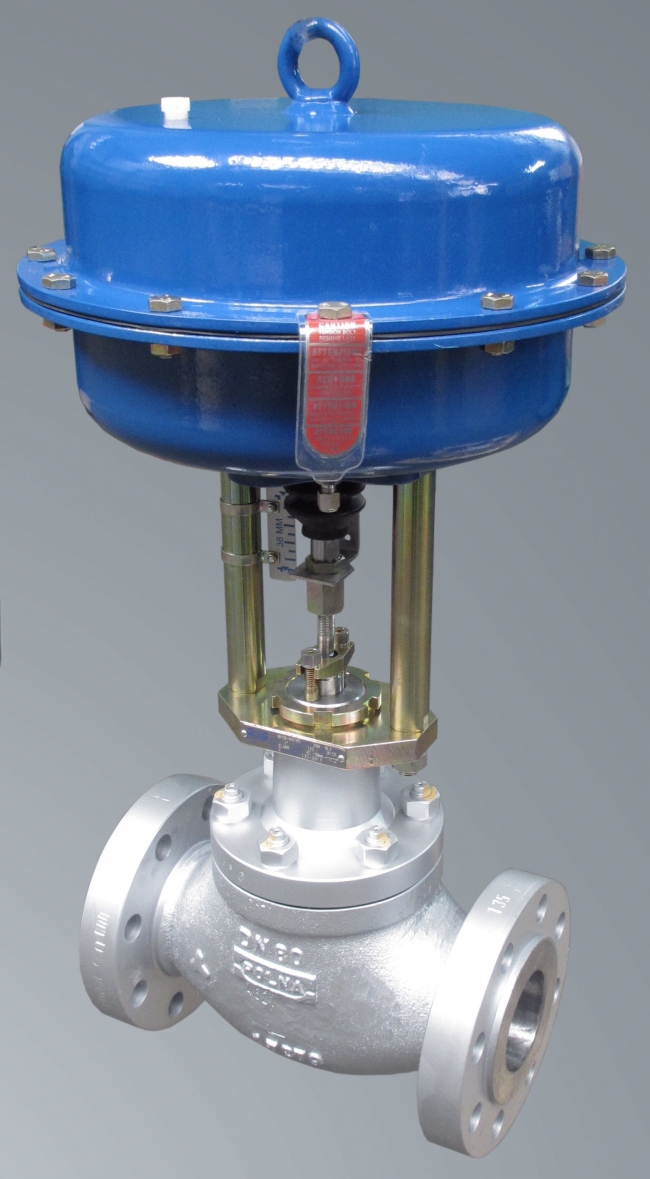

| Nominal sizes | DN25; 40; 50; 80; 100; 150; 200; 250; 300; 400
|
| Nominal pressure
| • PN10; 16; 25; 40; 63; 100; 160; 250; 320; 400
• possible execution to: PN630
• PN-H-74306:1985; PN-H-74307:1985.
• CL150; CL300; CL600; CL900; CL1500; CL2500
|
| Flow ratio | 10 ... 800 m3/h
|
| Control characteristics | linear, equal percentage, quick-opening, modified
|
| Rangeability | 50:1, 100:1
|
| Leakage class | IV class acc. to PN-EN 60534-4 V class acc. to PN-EN 60534-4 VI class acc. to PN-EN 60534-4 – non-catalogue class from B to G acc. to PN-EN 12266-1 |
| Media temperature | - 196 ... + 650°C
|
| Body materials
| carbon cast steel GP 240 GH (1.0619), WCB alloy cast steel G17CrMo9-10 (1.7379), WC9 carbon cast steel for low temperatures G20Mn5 (1.6220) acid-resistant cast steel GX5CrNiMo 19-11-2 (1.4408), CF8M Use of other materials is possible, but must be agreed upon. |
| Non-catalogue products
| We can adjust these parameters to your individual needs. In such cases, please contact our technical support specialist. In the menu: “Non-catalogue version control valves” and “New products” we present the following examples. |
- various materials of valve body cast and internal parts, adapted to specific working conditions
- constructional designs limiting the level of generated noise, increasing resistance to cavitation and flashing, enabling elimination of throttled flow
- wide range of nominal pressures from PN10 to CL2500, as well as flow ratios and control characteristics
- reduction in aggressive and toxic media emissions to the environment through application of bellow seal bonnets or bonnet packings meeting the requirements of TA – LUFT
- easy assembly and dismantling of valve internal parts for maintenance and service
- high durability and reliability due to application of top-class materials and surface improvement processes (burnishing, stelliting, heat treatment, CrN coatings)

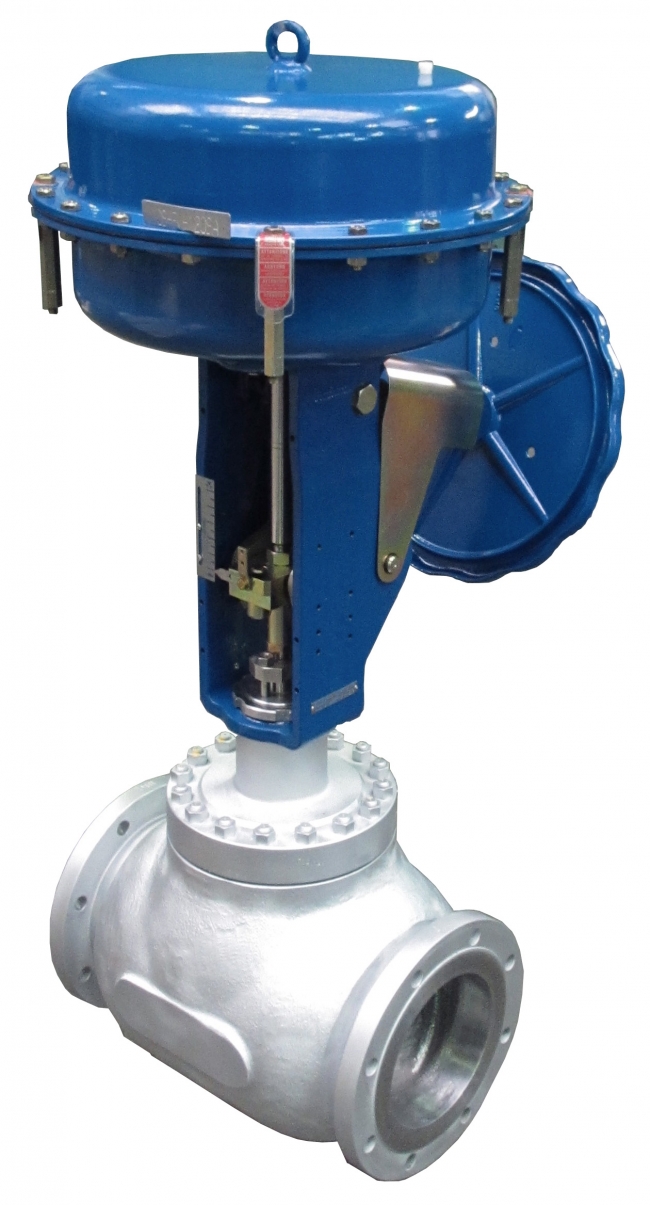

- possibility of matching with reversible action P1/R1 (with cast yoke) and P/R (column) multi-spring actuators and changing the spring range with no extra parts (keeping the number of springs)
- possibility of equipping the actuators with a side (up to P1/R1) or top (up to P/R) manual drive

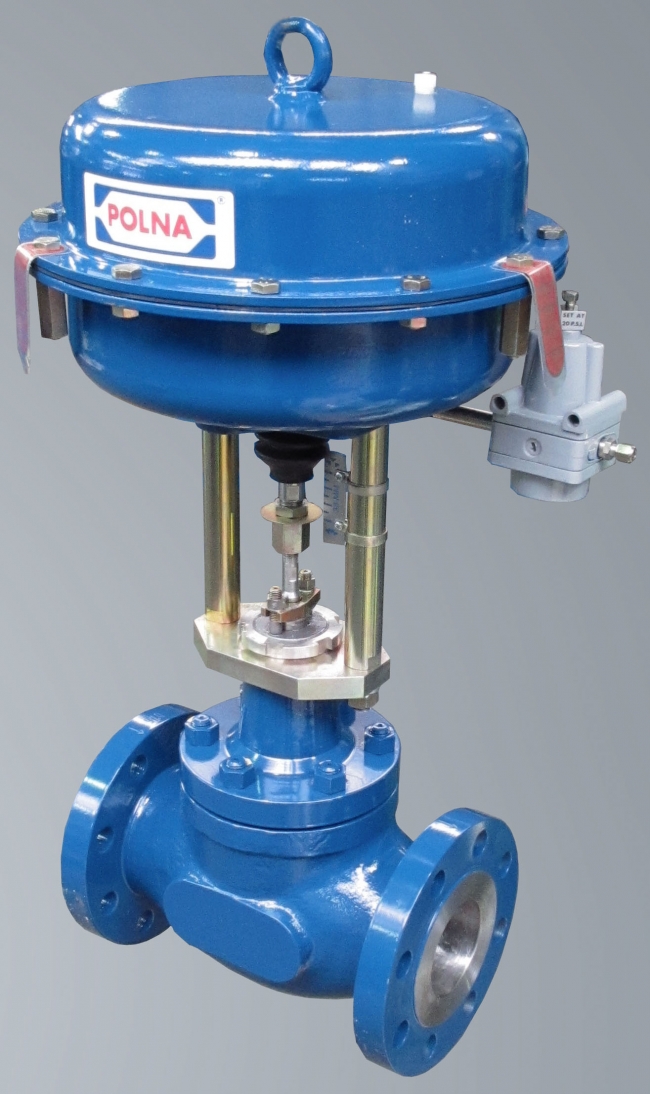

- possibility of performing diagnostics of “valve-actuator” system, due to application of smart electro-pneumatic positioners
- wide range of electric drives
- - possibility of special executions: for oxygen, hydrogen, low temperature mediums (liquid oxygen, liquid nitrogen), acid gases containing H2S; with heating jacket; for explosive atmospheres as per 94/9/EC – ATEX
- the design and production process meet the requirements of Quality Management System ISO 9001 and Directive 97/23/EC, and regulations of AD2000 Merkblatt, designated for installation on pipelines
- easy assembly and dismantling of valve internal parts for maintenance and service
- high durability and reliability due to application of top-class materials and surface improvement processes (burnishing, stelliting, heat treatment, CrN coatings)
We can adjust the control valve to match your individual needs. In such cases, please contact our technical support specialist.
